Hitachi ZX130LCN-6 13T Excavator

Although the smallest model in our Zaxis-6 medium excavator range, the ZX130LCN-6 has been developed using the same high quality components and materials as the larger models, ensuring its superior performance. With over 200 redesigned features compared to the previous model, including easy access to the engine compartment and a user-friendly fuel filter to improve maintenance procedure, this machine is engineered to give maximum availability and reliability.  The HIOS IV hydraulic system ensures the ZX130LCN-6 provides a smooth, fast and precise performance wherever it operates.

    Download Spec
    Enquire Now

    Specifications

    Hitachi ZX130LCN-6 13T Excavator Specification

    Engine
    Model Isuzu AR-4JJ1X
    Type 4-cycle water-cooled, 4 cylinder common rail direct injection diesel engine
    Rated power
    ISO 14396    		 78.5 kW at 2,000 min-1 (rpm)
    Maximum torque 375 Nm at 1,800 min-1 (rpm)
    Piston displacement 2.999 L
    Bore and stroke 95.4 mm x 104.9 mm
    Batteries 2 x 12 V / 58 Ah
    Hydraulic System

    Main System:
    Maximum Oil Flow

    2 x 117 L/min

    Pilot Pump:
    Maximum Oil Flow

    33.6 L/min

    Relief Valve Settings:
    Implement Circuit
    Swing Circuit
    Travel Circuit
    Pilot Circuit
    Power Boost

    34.3 MPa
    32.3 MPa
    34.3 MPa
    3.9 MPa
    36.3 MPa
    Drive, Swing and Dig
    Travel Speeds:
    High
    Low    		 0 – 5.5 km/h
    0 – 3.3 km/h
    Swing:
    Speed
    Torque    		 13.3 min-1
    34 kNw
    Dig:
    Max Digging Depth
    5,120 – 6,030 mm
    Service Capacities
    Fuel tank
    		 285.0 L
    Engine coolant
    		 21.0 L
    Engine oil
    		 17.0 L
    Swing device
    		 3.2 L
    Travel device (each side)
    		 4.2 L
    Hydraulic system
    		 185.0 L
    Hydraulic oil tank
    		 69.0 L
    DEF/Adblue
    		 35.0 L

    Photo Gallery

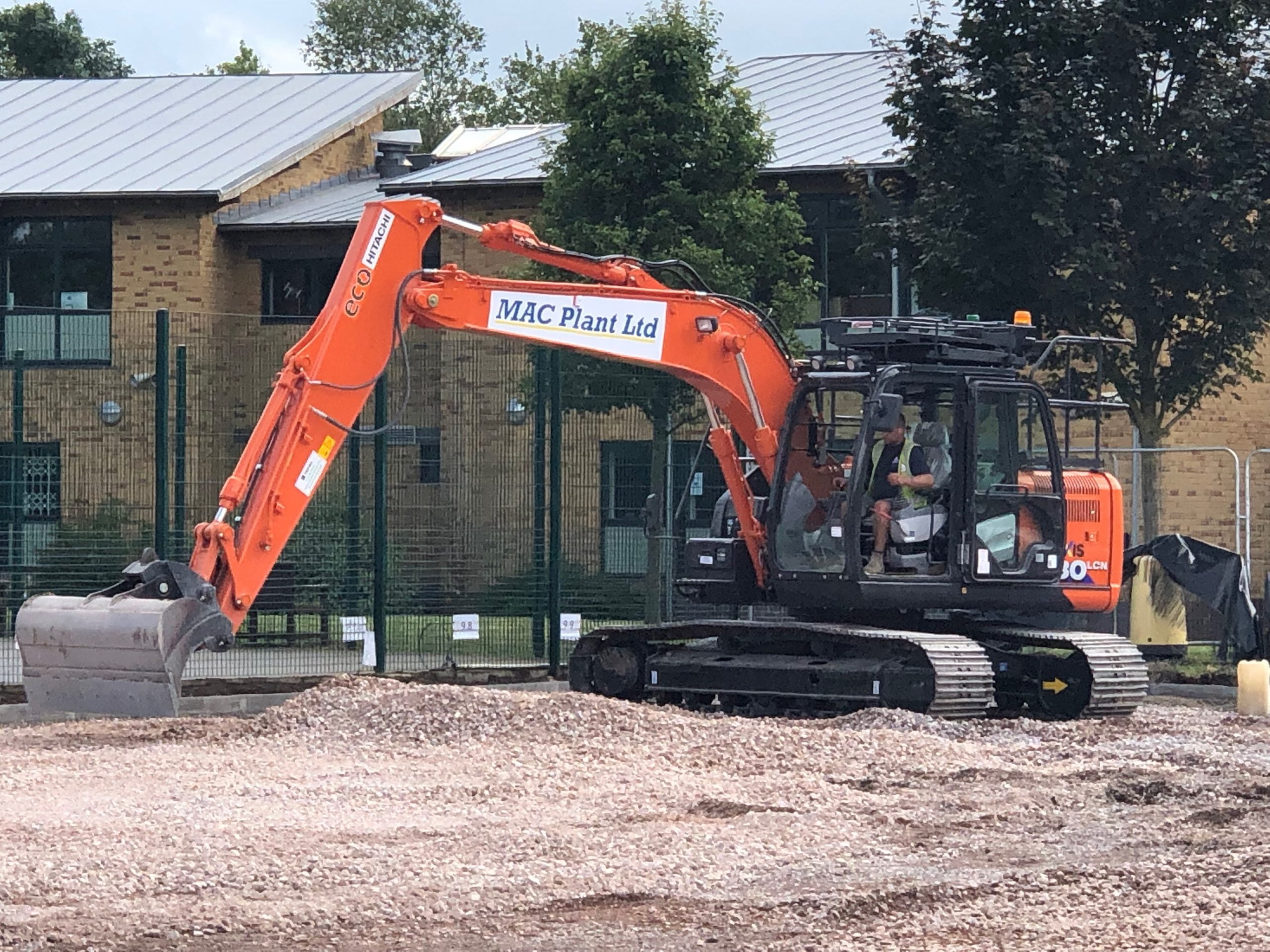

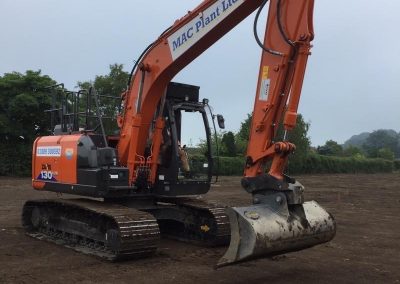

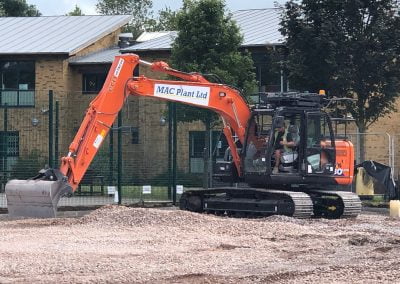

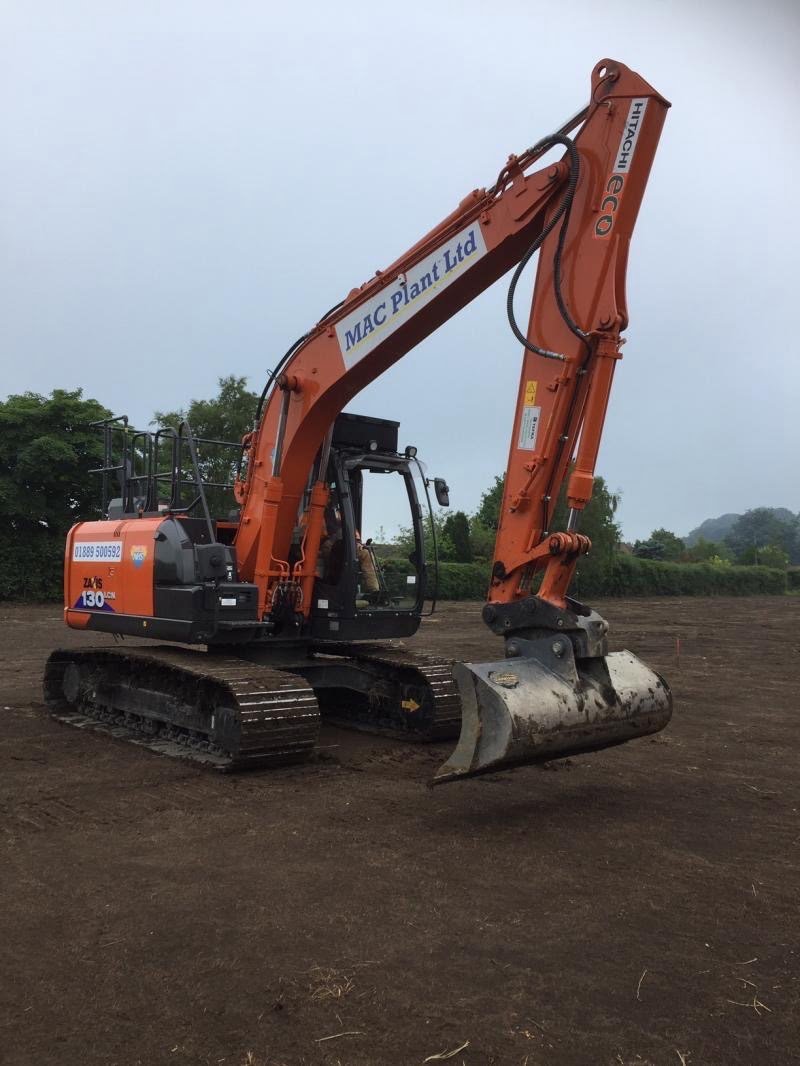

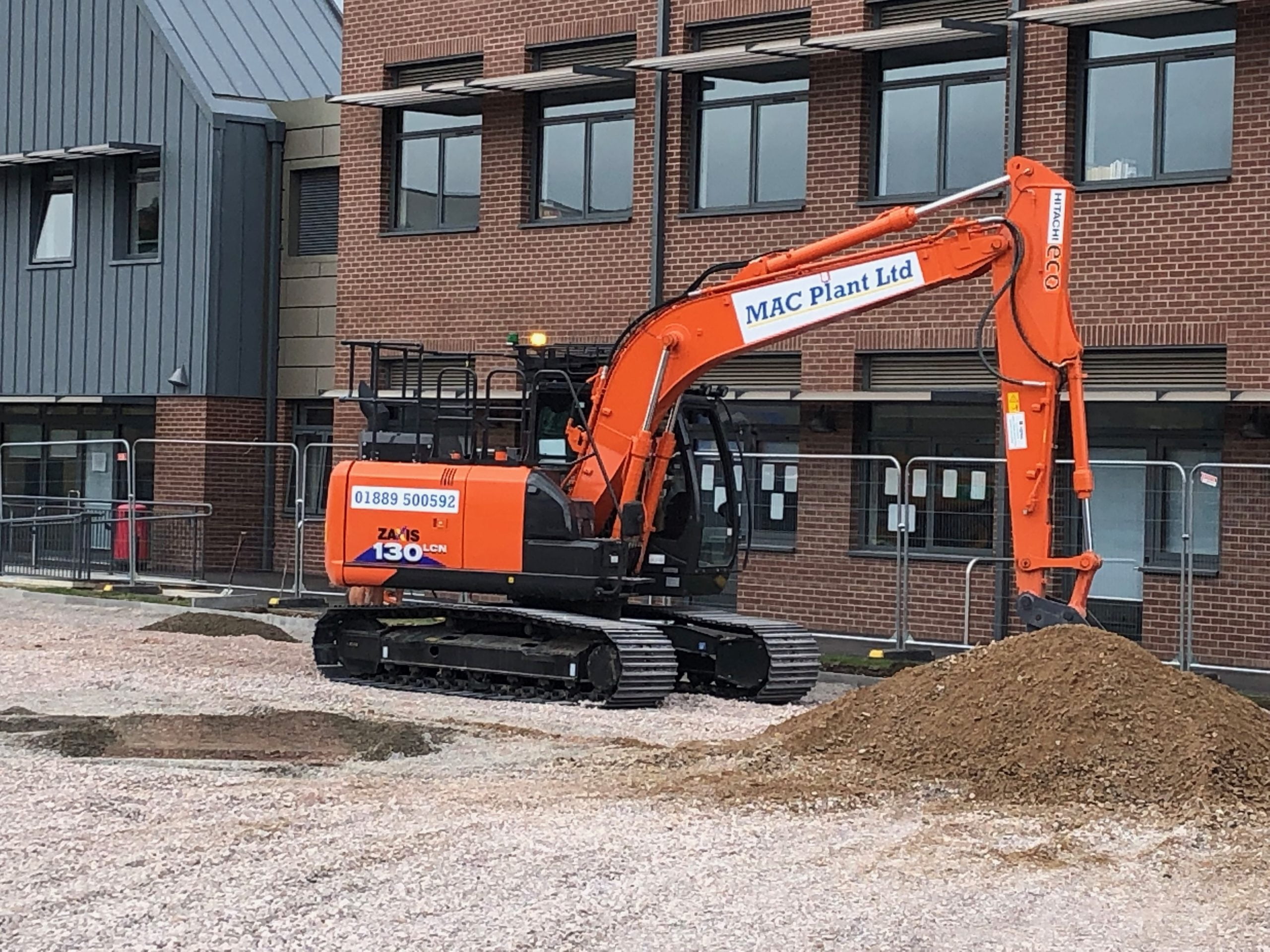

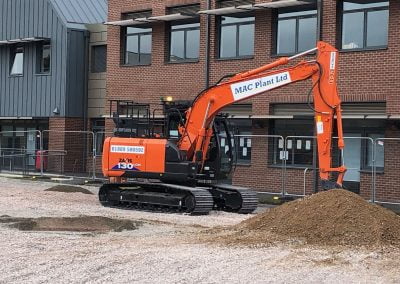

    Hitachi ZX130LCN-6 13T Excavator Photo Gallery
