Bobcat E50 Excavator
A standout in the 4-to-5-ton size class, the Bobcat® E50 compact excavator (mini excavator) works in confined areas without sacrificing digging performance. It features minimal tail swing action with less than an inch of tail overhang. The Tier 4-compliant E50 is available with a long arm option that maximizes dig depth, reach and dump height clearance. An angle blade option is also available.
Specifications
Bobcat E50 Excavator Specification
Engine
| Standard | Long Arm | |
| Emissions Tier (EPA) | Tier 4 | Tier 4 |
| Engine Fuel | Diesel | |
| Maximum Governed RPM | 2,200 rpm | 2,200 rpm |
| Horsepower | 49.8 hp | 49.8 hp |
| Turbocharged Engine | Yes | Yes |
| Optional Horsepower | n/a | |
Performance
| Standard | Long Arm | |
| Operating Weight | 10,677 lb | 11,195 lb |
| Weight Class | 4.8 t | 5.1 t |
| Travel Speed – High | 3.1 mph | 3.1 mph |
| Travel Speed – Low |
1.9 mph
|
1.9 mph |
| Arm Digging Force | 6,744 lbf | 5,751 lbf |
| Bucket Digging Force | 8,977 lbf | 8,977 lbf |
| Rated Lift Capacity |
6034 lb
|
5926 lb |
| Lift Radius | 118 in | |
| Boom Swing – Left | 75° | |
| Boom Swing – Right | 50° | |
| Maximum Dig Depth | 11.6 ft | 12.9 ft |
| Max Dump Height | 12.7 ft | 13.6 ft |
| Maximum Reach at Ground Level | 19.5 ft | 20.8 ft |
Capacities
| Standard | Long Arm | |
| Fuel Tank | 21.1 gal | |
Hydraulic System
| Standard | Long Arm | |
| Auxiliary Std Flow | 20 gal/min | |
| Auxiliary Pressure | 3,045 psi | 3,045 psi |
Dimension
| Standard | Long Arm | |
| Length | 218.7 in | 219 in |
| Overall Length in Travel Position | 218.7 in | 219 in |
| Width | 77.2 in | 77.2 in |
| Height | 99.7 in | 99.7 in |
| Height with Operator Cab | 99.7 in | 99.7 in |
Features
| Standard | Long Arm | |
| Air Conditioning | Yes | Yes |
| Cab Enclosure | Yes | Yes |
| Cab Heater | Yes | Yes |
| Heater Air Conditioning | Yes | Yes |
| Radio | Yes | Yes |
| Tail Swing Type | Minimal | Minimal |
| Engine Shutdown | No | No |
| Auxiliary Hydraulics | No | No |
| Secondary Auxiliary Hydraulics | Yes | Yes |
| Quick Tach System | No | No |
| Rubber Track | No | No |
| Selectable Auxiliary Hydraulic Flow | No | No |
| Angle Blade | Yes | Yes |

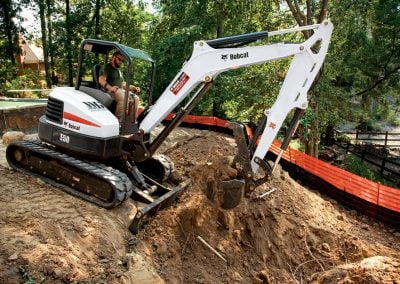

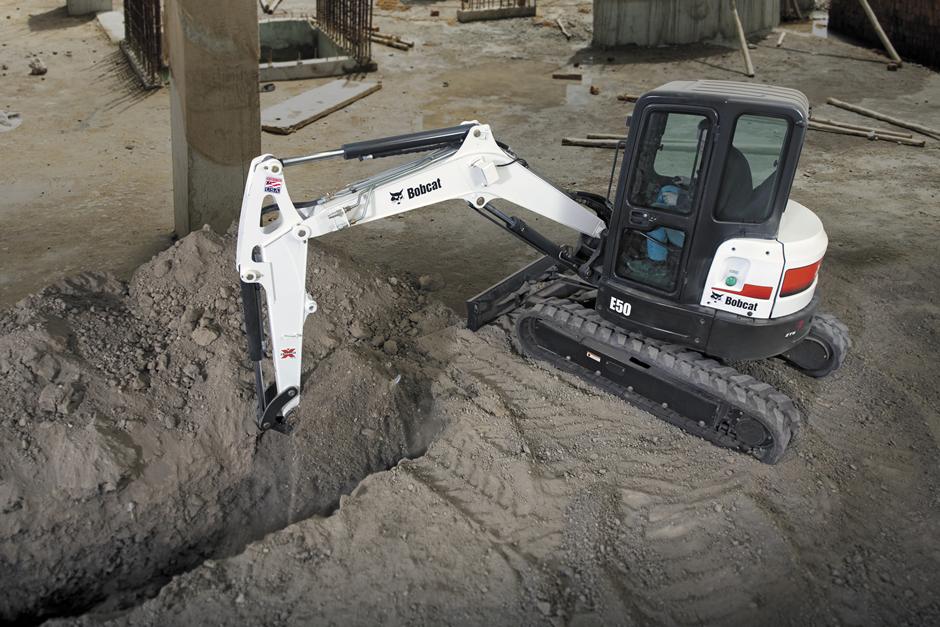

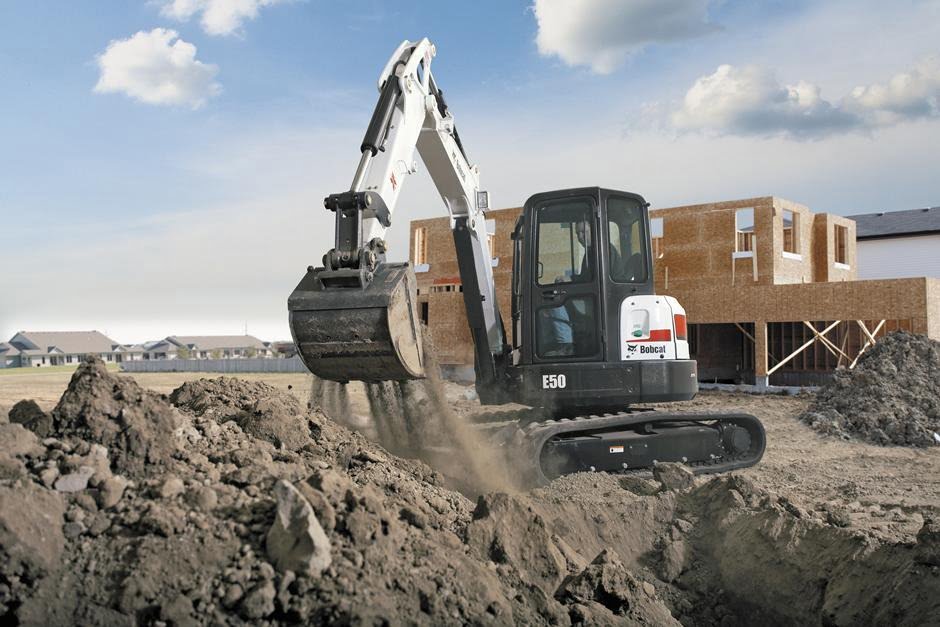

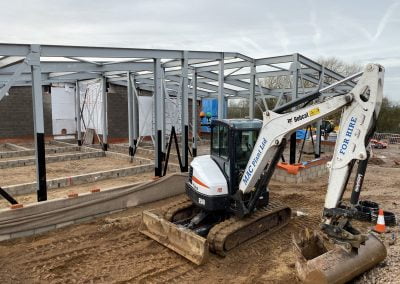

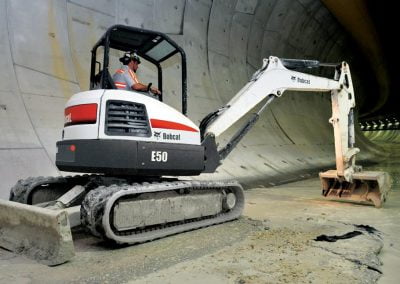

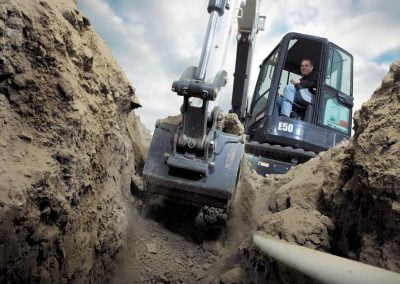

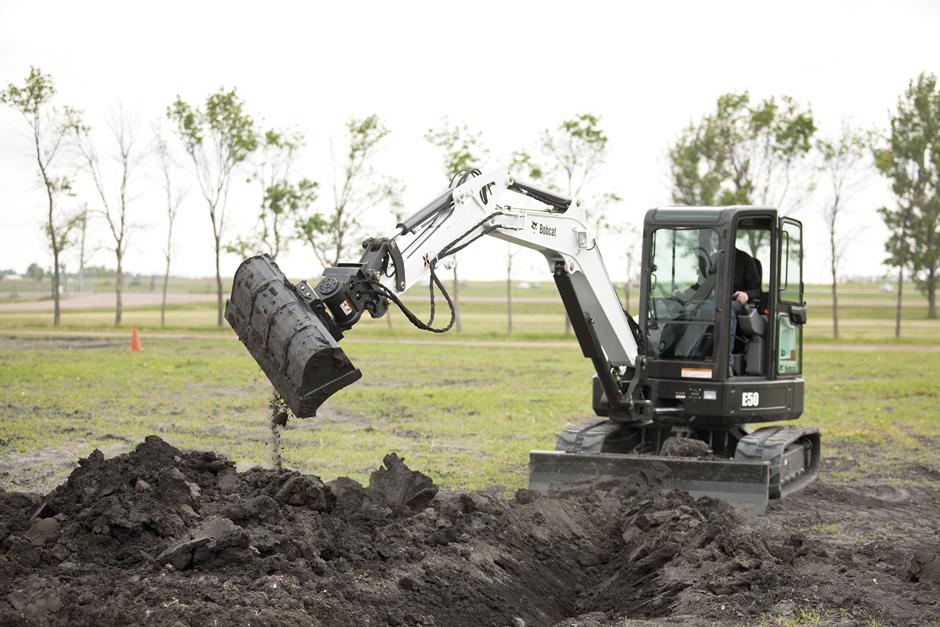

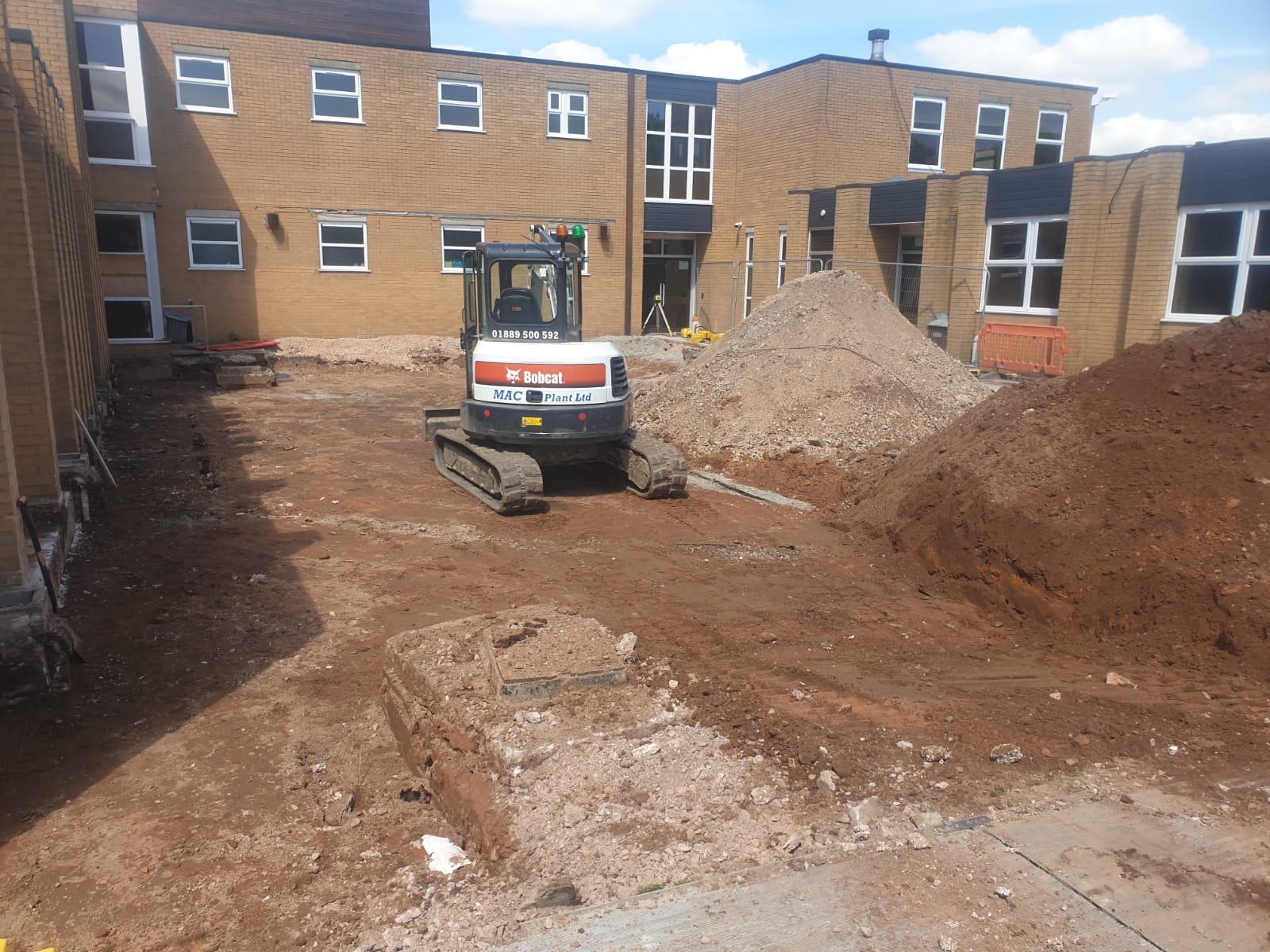

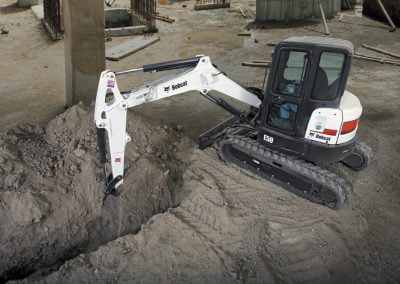

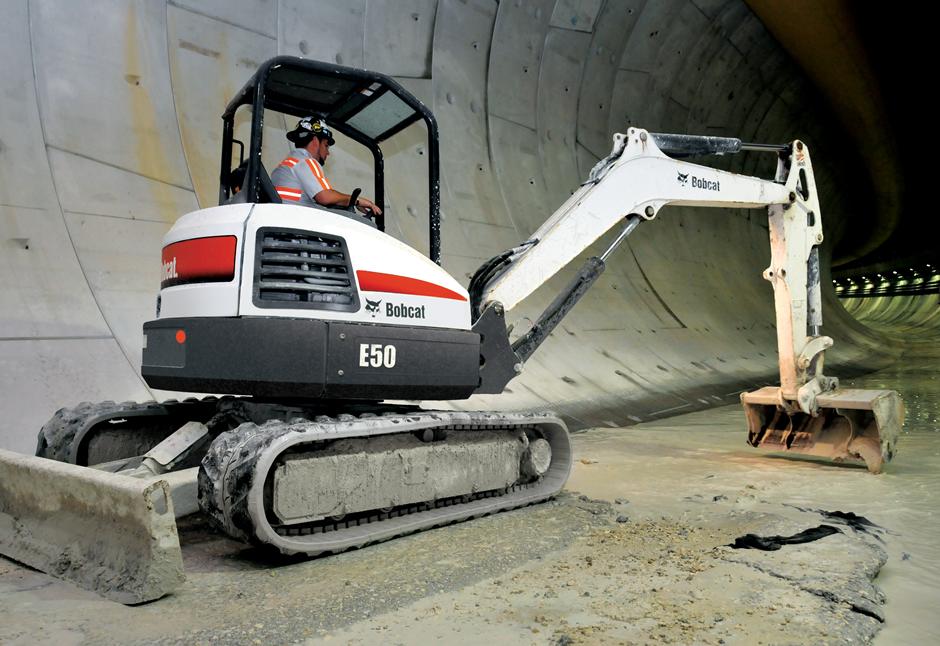

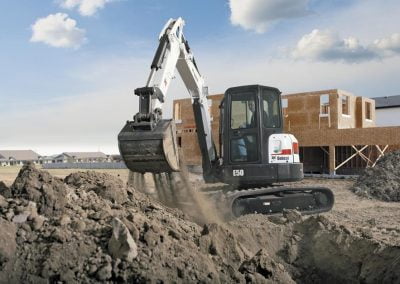

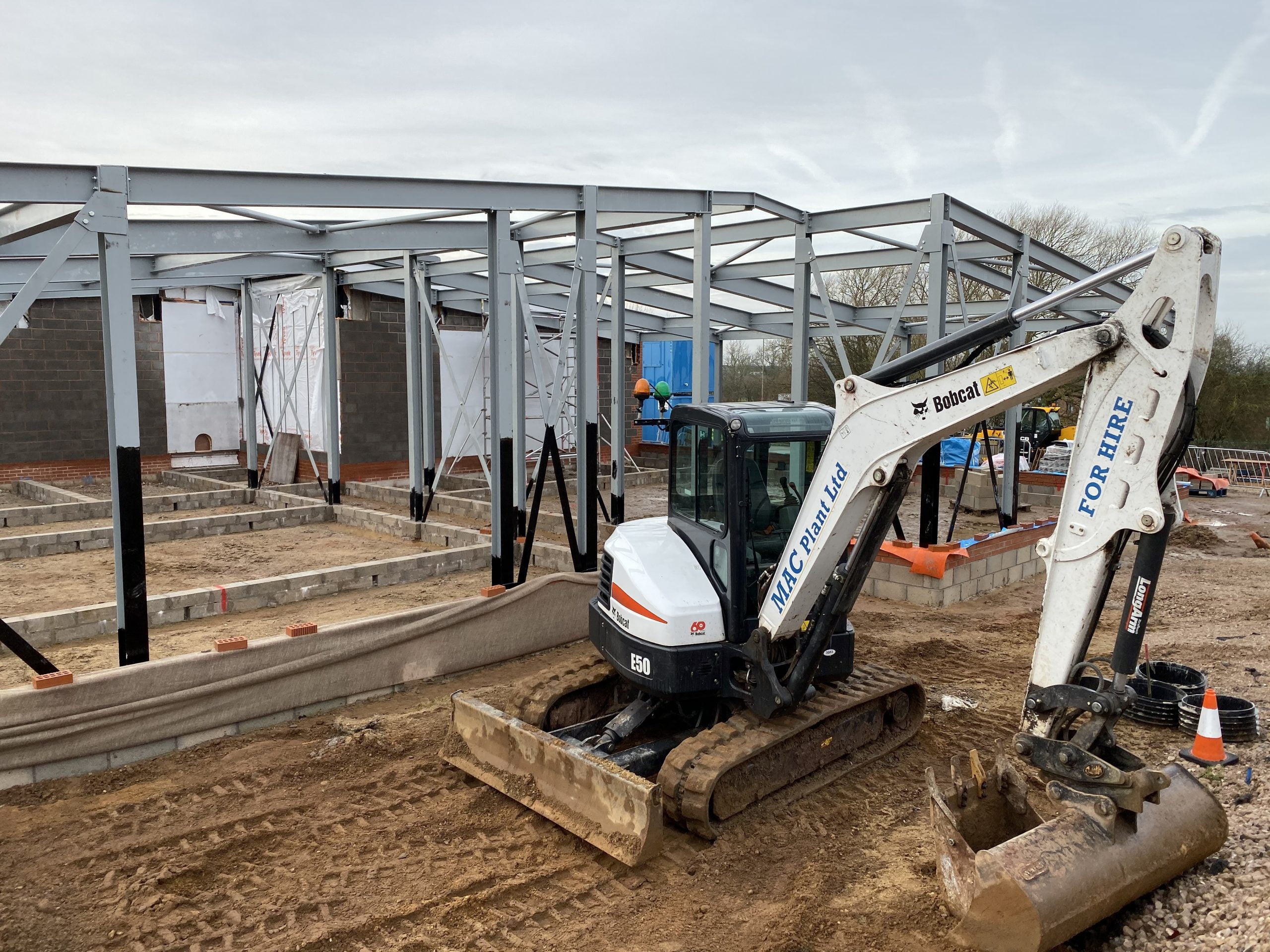

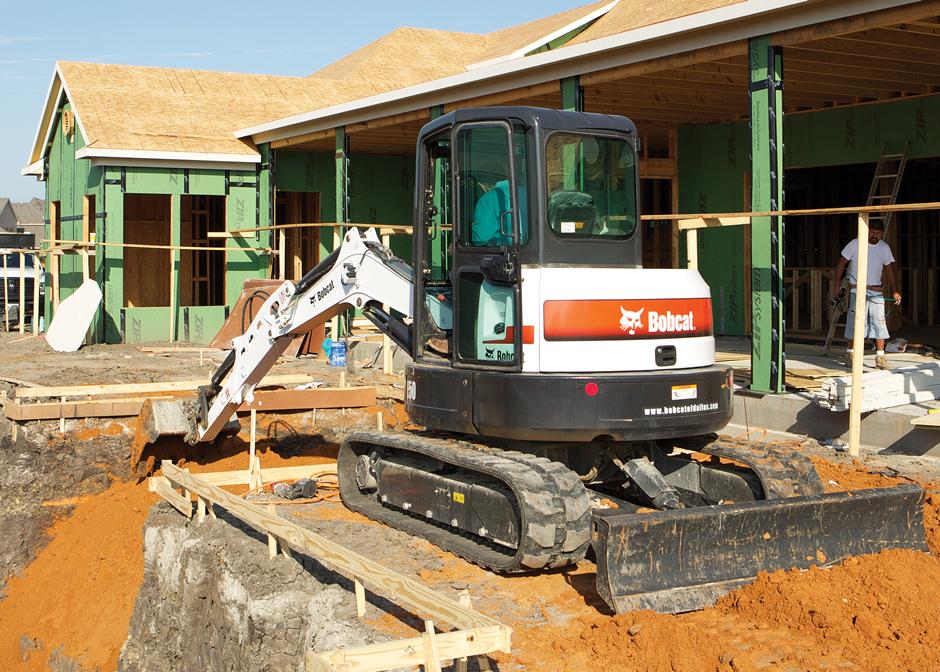

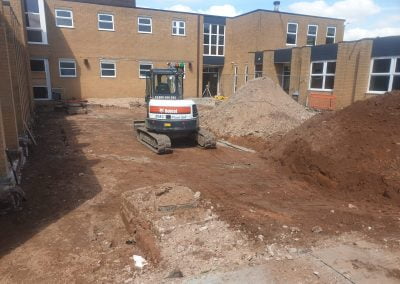

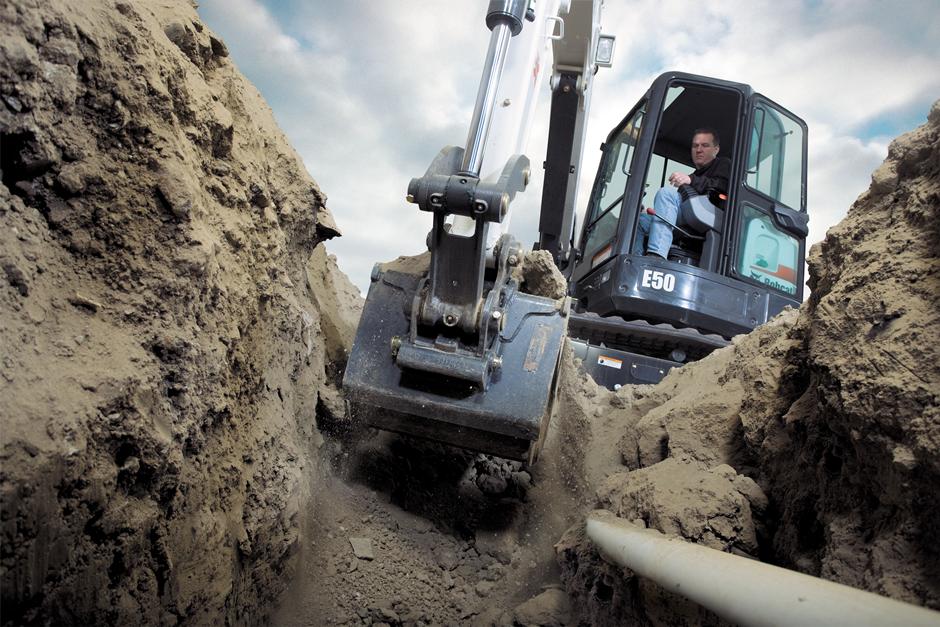

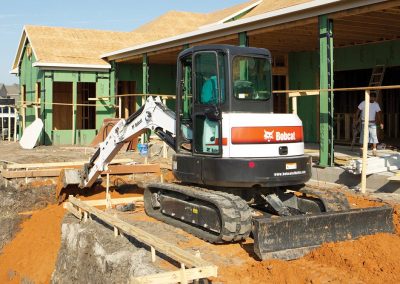

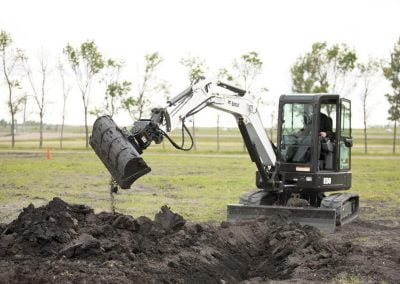

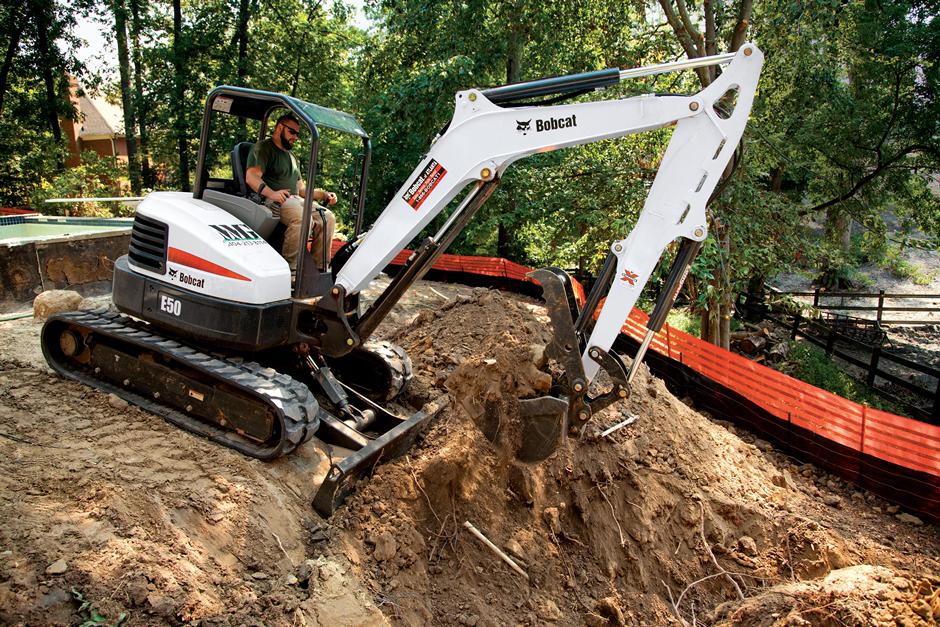

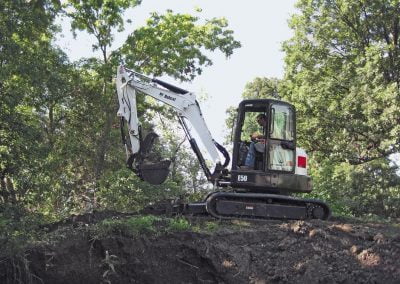

Photo Gallery
Bobcat E50 Excavator Photo Gallery
