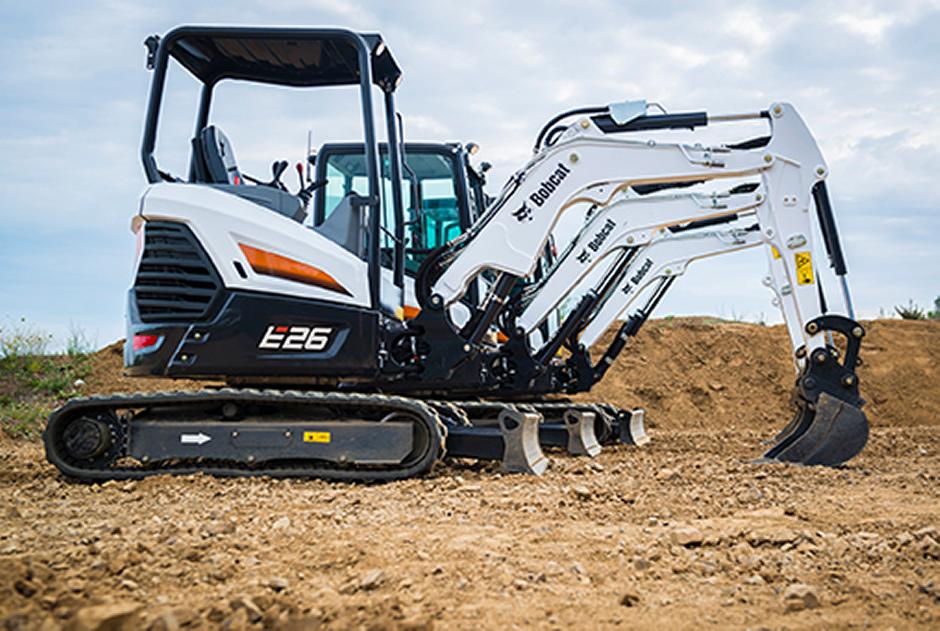

Bobcat E26 Excavator (x4)

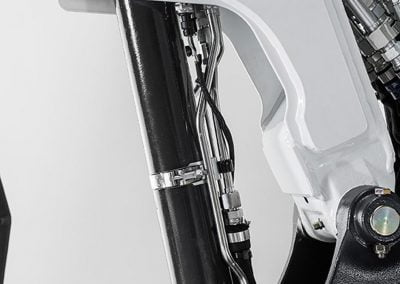

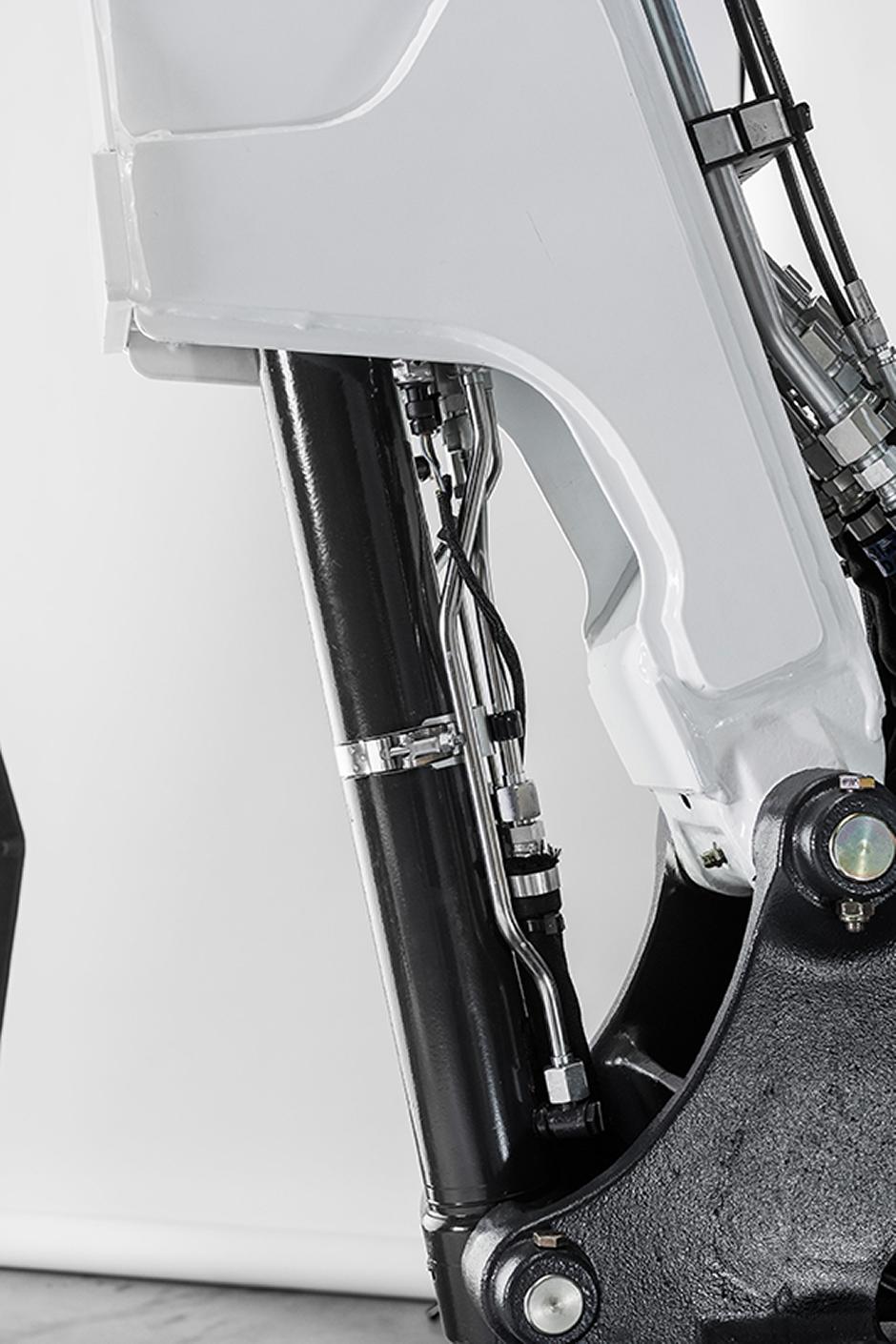

The new generation of the popular Bobcat® E26 compact excavator (mini excavator) is an easy-to-use, robust machine optimized for specific rental industry needs while introducing the next level of operator comfort and features required by demanding owner operators. The new E26 excavator has a transport weight reduced by 100 kg but increased over-the-side lifting capacity. To overcome a common issue in the rental market and thus protect the uptime, the E26 is now equipped with extra innovative features such as the Cylinder-Inside-Boom (CIB) workgroup and its geometry, increasing protection against bucket collision with the cab.
Details
Bobcat E26 Excavator (x4) Details
Standard Features
- 1500 mm dozer blade
- 250 mm rubber track
- Adjustable double acting auxiliary hydraulic (AUX1) with Quick Couplers
- Battery disconnect switch
- Blade float feature
- Clamp ready
- Control console locks
- Cupholder
- Engine/hydraulic monitor with shutdown
- Foldable and ergonomic pedals
- Full fuel warning alarm
- Grease gun holder
- Horn
- Machine IQ (telematic)
- Proportional fingertip auxiliary and boom swing offset hydraulic control
- Retractable seat belt
- Seat with high back
- TOPS/ROPS/FOPS canopy * (1)
- Two-speed travel with Auto shift
- Upper structure four-point tie down
- Work light (boom)
- Water separator
- Warranty: 12 months, 2000 hours (whichever occurs first)
(1) Roll Over Protective Structure (ROPS) – Meets requirements of ISO 3471. Tip Over Protective Structure (TOPS) – Meets requirements of ISO 12117. Falling Object Protective Structure (FOPS) – Meets requirements of ISO 3449.
Options
- 1st AUX hydraulic on arm
- 2nd AUX hydraulics
- AM/FM MP3 stereo radio
- Additional lights (2+1)
- Auto idle
- Beacon
- Object handling device (safety valves + overload warning device + lifteye)
- Case drain line
- Dlx textile suspension seat
- Direct-to-tank-AUX1 line
- Fire extinguisher
- Keyless ignition
- Klac D and MS03 coupler
- Left and right mirror
- Special Application kit
- Suspension seat
- TOPS/ROPS/FOPS cab with heater
- Travel motion alarm
Specifications
Bobcat E19 Excavator Specification
Weights
| Operating weight | 2,608 kg |
| Additional weight for cab with heating | 2,477 kg |
| Additional weight for cab with HVAC | -118 kg |
| Ground pressure with rubber tracks | 28.9 kPa |

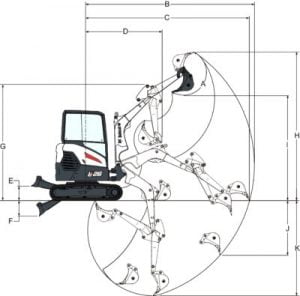

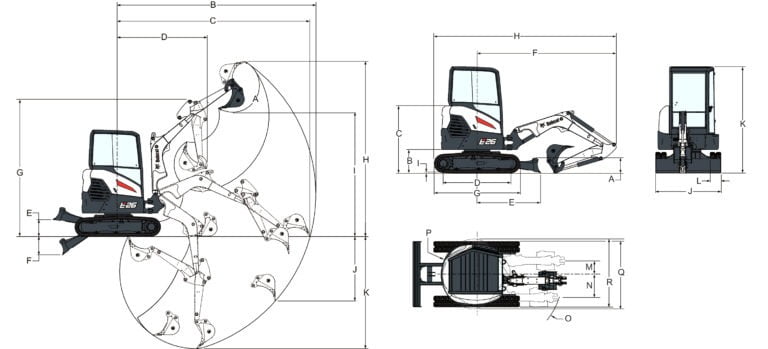

Working Range
| (A) | Bucket pivot angle | 185 ° |
| (B) | Maximum reach of working equipment | 4,678 mm |
| (B*) | Maximum reach of working equipment, long dipperstick | 4,966 mm |
| (C) | Maximum reach at ground level | 4,553 mm |
| (C*) | Maximum reach at ground level, long dipperstick | 4,850 mm |
| (D) | Maximum working equipment radius with boom at maximum height and dipperstick fully retracted | 2,132 mm |
| (D*) | Maximum working equipment radius with boom at maximum height and dipperstick fully retracted, long dipperstick | 2,135 mm |
| (E) | Maximum blade height | 385 mm |
| (F) | Maximum blade depth | 315 mm |
| (G) | Maximum height of working equipment with dipperstick retracted | 3,246 mm |
| (H) | Maximum bucket tooth height | 4,272 mm |
| (H*) | Maximum bucket tooth height, long dipperstick | 4,473 mm |
| (I) | Maximum dump height | 3,057 mm |
| (I*) | Maximum dump height, long dipperstick | 3,258 mm |
| (J) | Maximum depth of vertical wall which can be excavated | 1,809 mm |
| (J*) | Maximum depth of vertical wall which can be excavated, long dipperstick | 2,078 mm |
| (K) | Maximum digging depth | 2,582 mm |
| (K*) | Maximum digging depth, long dipperstick | 2,890 mm |

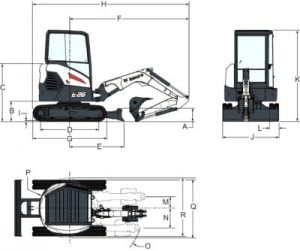

Dimensions
| (* Dentoes values which long dipperstick installed) | ||
| (A) | Blade height | 319 mm |
(B) | Clearance, upper structure to ground line | 539 mm |
| (C) | Ground line to top of engine cover | 1,540 mm |
| (D) | Length of track on ground | 1,543 mm |
| (E) | Machine centre line to blade | 1,462 mm |
| (F) | Minimum radius in travel position | 3,192 mm |
| (G) | Overall length of track assembly | 1,965 mm |
| (H) | Overall length in travel position | 4,174 mm |
| (I) | Track lug height | 21 mm |
| (J) | Blade width | 1,500 mm |
| (K) | Height | 2,438 mm |
| (L) | Track width | 250 mm |
| (M) | Machine centre line to working equipment centre line, left-hand rotation | 580 mm |
| (N) | Machine centre line to working equipment centre line, right-hand rotation | 705 mm |
| (O) | Minimum turning radius | 1,755 mm |
| (P) | Swing clearance, rear | 820 mm |
| (P*) | Swing clearance, rear (zero tail swing), long dipperstick | 840 mm |
| (Q) | Working width at maximum right-hand rotation | 1,741 mm |
| (R) | Working width at maximum left-hand rotation | 1,616 mm |
Engine
| Make / model | Kubota / D1105-E4B-BCZ-1 |
| Fuel | Diesel |
| Number of cylinders | 3 |
| Displacement | 1,123 cm3 |
| Maximum NET power (ISO 9249) | 15.4 kW |
| Maximum NET torque (ISO 9249) | 71.2 Nm |
Performance
| Digging force, dipperstick (ISO 6015) | 15,690 N |
| Digging force, bucket (ISO 6015) | 23,720 N |
| Drawbar pull | 29,080 N |
| Travel speed, low range | 2.5 km/h |
| Travel speed, high range | 4.3 km/h |
Hydraulic System
| Pump type | Dual outlet variable displacement piston pump with gear pumps |
| Piston pump capacity | 87 L/min |
| Auxiliary flow | 50 L/min |
| System relief pressure for auxiliary circuits | 180 bar |
Slew System
| Boom swing, left | 60 ° |
| Boom swing, right | 60 ° |
| Slew rate | 9.3 RPM |
Fluid Capacities
| Cooling system | 4.3 L |
| Engine lubrication plus oil filter | 3.6 L |
| Fuel reservoir | 34.4 L |
| Hydraulic reservoir | 10.2 L |
| Hydraulic system | 23 L |
Environmental
| Noise level LpA(EU Directive 2006/42/EC) | 80 dB(A) |
| Noise level LWA(EU Directive 2000/14/EC) | 93 dB(A) |
| Whole body vibration (ISO 2631–1) | 0.1 ms-2 |
| Hand-arm vibration (ISO 5349–1) | 0.5 ms-2 |
