Bobcat E19 Excavator
The Bobcat® E19 compact excavator (mini excavator) delivers impressive performance in confined spaces with the need for only minimal repositioning. The operator can hydraulically retract the undercarriage to a width of only 98 cm in order to travel through gates or between walls and houses, then expand it to 136 cm for a wider footprint and greater performance. The E19 has reduced tail swing for better versatility and manoeuvrability on compact jobsites. The optional fingertip-controlled boom offset and auxiliary offer the double benefit of improved controllability of the boom swing function and connected attachments, while also creating more floor space and comfort for the operator.
Details
Bobcat E19 Excavator Details
Standard Features
- 230 mm rubber track
- 980 mm dozer blade with two 190 mm blade extensions
- Battery disconnect switch
- Control console locks
- Cupholders
- Double acting auxiliary hydraulics with quick couplers
- Engine monitor with auto shutdown
- Exposed counterweight with 4 mm steel tailgate
- Foldable and ergonomic pedals
- Full fuel warning alarm
- Grease gun holder
- Horn
- Hydraulic and travel control lockout
- Hydraulic joystick controls
- Hydraulically retractable undercarriage from 1360 mm to 980 mm
- Retractable seat belt
- Storage compartment
- TOPS/ROPS/FOPS canopy (1)
- Two-speed travel
- Upper structure four point tie down
- Water separator
- Work light (boom)
- Warranty: 12 months, 2000 hours (whichever occurs first)
(1) Roll Over Protective Structure (ROPS) – Meets requirements of ISO 3471. Tip Over Protective Structure (TOPS) – Meets requirements of ISO 12117. Falling Object Protective Structure (FOPS) – Meets requirements of ISO 3449.
Options
- 1st AUX hydraulic on arm
- 2nd AUX hydraulics
- Additional lights (2+1)
- AM/FM MP3 stereo radio
- Beacon
- Comfort package (Superior seat for canopy or cloth suspension seat for cab, Autospeed shift, Aux and Off-set pilot control)
- Demolition package (boom, arm, bucket cylinder covers & HD travel hoses guard)
- Fire extinguisher
- Hydraulic clamp
- Keyless ignition
- Klac C and MS01 couplers
- LED lights set
- Left and right mirror
- Long dipperstick with clamp eyes
- Long dozer blade
- Object handling device (safety valves + overload warning device + lifteye)
- Performance package (HD travel motors, add. counterweight)
- Special applications kit
- Travel motion alarm
- TOPS/ROPS/FOPS cab with heater
Specifications
Bobcat E19 Excavator Specification
Weights
| Operating weight with cab and bucket (ISO 6016) | 1,885 kg |
| Transport mass (no attachment) | 1,768 kg |
| Weight reduction with canopy | -96 kg |
| Additional weight for long dipperstick | 6 kg |
| Additional weight for counterweight | 50 kg |
| Ground pressure with rubber tracks | 32.4 kPa |

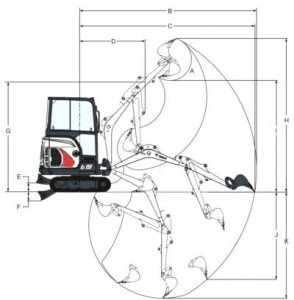

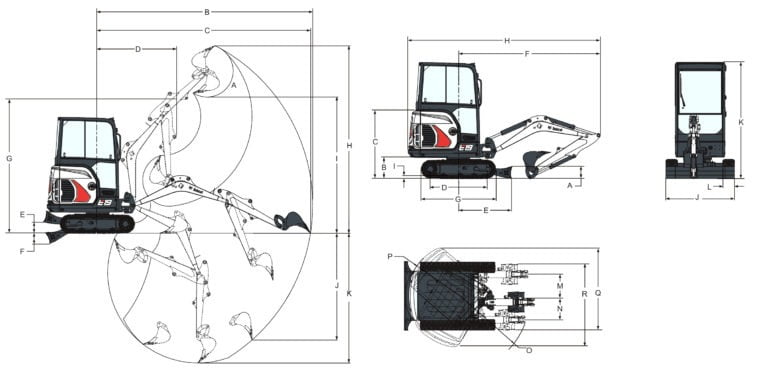

Working Range
| (A) | Bucket pivot angle | 196 ° |
| (B) | Maximum reach of working equipment | 4,084 mm |
| (B*) | Maximum reach of working equipment, long dipperstick | 4,257 mm |
| (C) | Maximum reach at ground level | 4,039 mm |
| (C*) | Maximum reach at ground level, long dipperstick | 4,214 mm |
| (D) | Maximum working equipment radius with boom at maximum height and dipperstick fully retracted | 1,542 mm |
| (D*) | Maximum working equipment radius with boom at maximum height and dipperstick fully retracted, long dipperstick | 1,561 mm |
| (E) | Maximum blade height | 220 mm |
| (F) | Maximum blade depth | 204 mm |
| (G) | Maximum height of working equipment with dipperstick retracted | 2,564 mm |
| (H) | Maximum bucket tooth height | 3,573 mm |
| (H*) | Maximum bucket tooth height, long dipperstick | 3,701 mm |
| (I) | Maximum dump height | 2,566 mm |
| (I*) | Maximum dump height, long dipperstick | 2,693 mm |
| (J) | Maximum depth of vertical wall which can be excavated | 1,948 mm |
| (J*) | Maximum depth of vertical wall which can be excavated, long dipperstick | 2,115 mm |
| (K) | Maximum digging depth | 2,385 mm |
| (K*) | Maximum digging depth, long dipperstick | 2,565 mm |

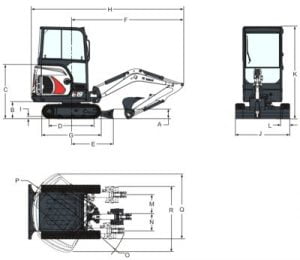

Dimensions
| (* Dentoes values which long dipperstick installed) | ||
| (A) | Blade height | 235 mm |
| (B) | Clearance, upper structure to ground line | 419 mm |
| (C) | Ground line to top of engine cover | 1,340 mm |
| (D) | Length of track on ground | 1,114 mm |
| (E) | Machine centre line to blade | 1,045 mm |
| (F) | Minimum radius in travel position | 2,832 mm |
| (G) | Overall length of track assembly | 1,476 mm |
| (H) | Overall length in travel position | 3,831 mm |
| (H*) | Overall length in travel position, long dipperstick | 3,812 mm |
| (I) | Track lug height | 25 mm |
| (J) | Blade width | 980 mm |
| (J*) | Blade width (extensions extended) | 1,360 mm |
| (K) | Height | 2,299 mm |
| (L) | Track width | 230 mm |
| (M) | Machine centre line to working equipment centre line, left-hand rotation | 433 mm |
| (N) | Machine centre line to working equipment centre line, right-hand rotation | 589 mm |
| (O) | Minimum turning radius | 1,154 mm |
| (P) | Swing clearance, rear | 1,009 mm |
| (Q) | Working width at maximum right-hand rotation | 1,801 mm |
| (R) | Working width at maximum left-hand rotation | 1,645 mm |

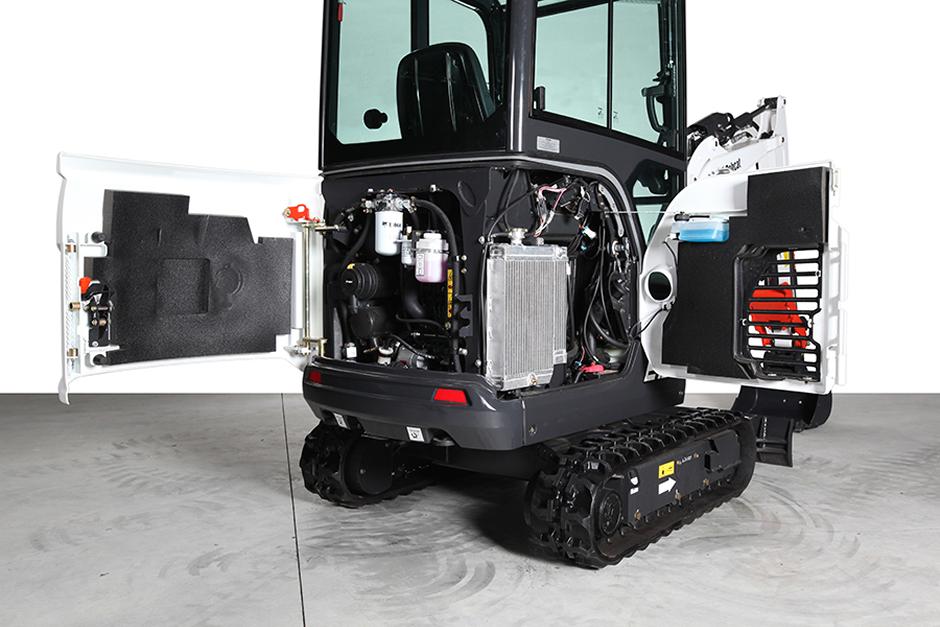

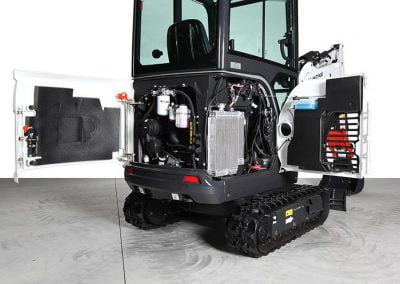

Engine
| Make / model | Kubota / D722-E4B-BCZ-7 |
| Fuel | Diesel |
| Number of cylinders | 3 |
| Displacement | 719 cm3 |
| Maximum power @ 2500 rpm (ISO 14396) | 10.2 kW |
| Maximum torque (SAE) | 43.5 Nm |
Performance
| Digging force, dipperstick (ISO 6015) | 10,371 N |
| Digging force, long dipperstick (ISO 6015) | 9,279 N |
| Digging force, bucket (ISO 6015) | 20,835 N |
| Drawbar pull | 19,380 N |
| Travel speed, low range | 2.7 km/h |
| Travel speed, high range | 4.2 km/h |
Hydraulic System
| Pump type | Dual piston pump with gear pump |
| Pump capacity | 41.3 L/min |
| Piston pump capacity | 30 L/min |
| Auxiliary flow | 30 L/min |
| Auxiliary relief | 180.0 bar |
Slew System
| Boom swing, left | 80 ° |
| Boom swing, right | 60 ° |
| Slew rate | 8.4 RPM |
Fliud Capacities
| Cooling system | 3.3 L |
| Engine lubrication plus oil filter | 3.3 L |
| Fuel reservoir | 19 L |
| Hydraulic reservoir | 14.3 L |
| Hydraulic system | 19 L |
Environmental
| Noise level LpA(EU Directive 2006/42/EC) | 79 dB(A) |
| Noise level LWA(EU Directive 2000/14/EC) | 93 dB(A) |
| Whole body vibration (ISO 2631–1) | 0.1 ms-2 |
| Hand-arm vibration (ISO 5349–1) | 0.3 ms-2 |

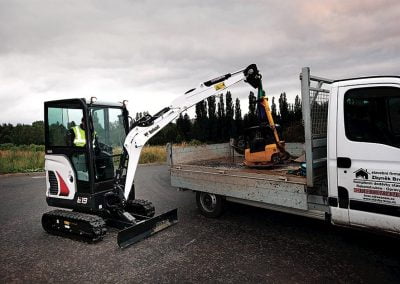

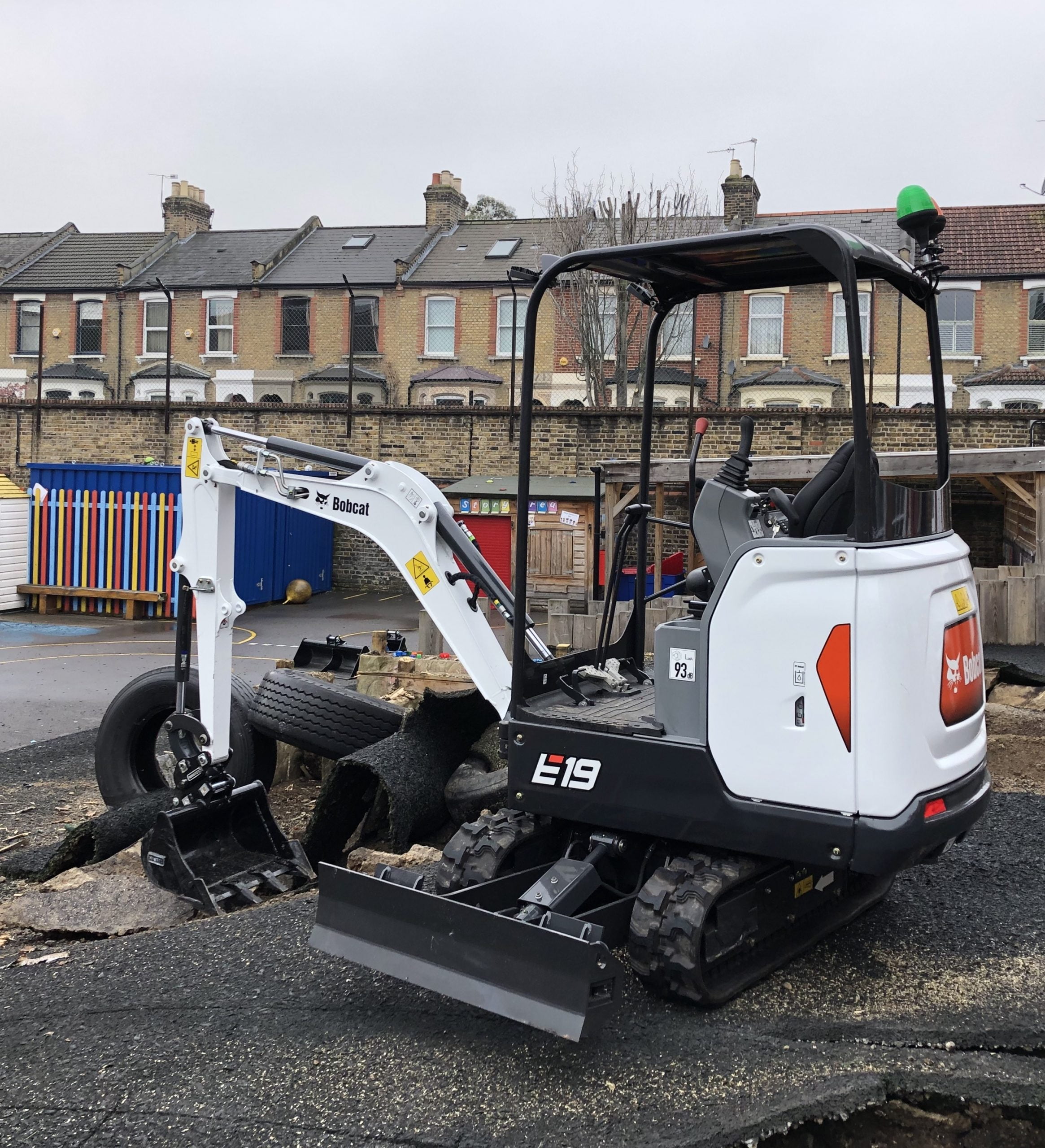

Photo Gallery
