The Bobcat S570 Skid Steer with planer attachment is available for hire across the UK. Locations we regularly deliver to include Staffordshire, Cheshire, Derbyshire and West Midlands.

Bobcat S570 Skid Steer Planer

This highly versatile skid steer is available with a planer attachment for cutting and planing/milling concrete and ashpalt.

Due to it’s maneuverable size and the ability to easily set and mantain depth, width and slope control, this planer is ideal for undertaking the following tasks:

Planing close to walls and curbs
Repairing around small to medium areas on pavements, pot holes and footpaths
Planing around manholes
Mating uneven pavement surfaces
Cleaning up around larger planing machines
Planing around manholes
Tapering edges on a roadway

Download Spec

Enquire Now

Nationwide Service

Machinery Available With Operator

All Staff CPCS Trained

Details

Bobcat S570 Skid Steer Planer Details

Tasks

The vertical lift Bobcat® S570 skid-steer loader is ideal for clearing high-sided truck boxes and hoppers or placing pallets loaded with heavy materials.

Standard Features

10 x 16.5, 10–ply, Heavy duty tyres
3-point seat belt
Bobcat Interlock Control System (BICS)
Bob-Tach™ frame
CE certification
Deluxe operator cab with windows (1)
Electrically activated proportional front auxiliary hydraulics
Engine/hydraulics system shutdown
High-back adjustable suspension seat
Hydraulic bucket positioning (including ON/OFF switch)
Instrumentation
Lift arm support
Parking brake
Seat bar
Turbo-charger with approved spark arrestor
Warranty: 12 months or 2000 hours (whichever occurs first)
Work lights, front and rear

(1) Roll Over Protective Structure (ROPS) – meets requirements of SAE-J1040 and ISO 3471; Falling Object Protective Structure (FOPS) – meets requirements of SAE-J1043 and ISO 3449, Level I

View more information about the Bobcat S570 Skid Steer Planer on the Bobcat website.

Options

Factory Options
- Advanced Control System (ACS)
- Selectable Joystick Controls (SJC)
- Two speed
- Deluxe instrument panel
- Deluxe operator cab with heating
- Cab enclosure with HVAC
- High-Flow hydraulics
- Power Bob-Tach™
- Back-up alarm
- Beacon
- Strobe
- Radio
- Road kit
- 10 x 16.5, 10–ply, Heavy duty tyres, offset rims
- 10 x 16.5, 10–ply, Severe duty tyres
- 12 x 16.5, 12–ply, Severe duty tyres, poly filled
- 10 x 16.5, Solid Flex tyres
- 31 x 12-16.5, 10–ply, Superflotation tyres
Dealer Installed Options
- Cab enclosure kit
- Special applications front door kit
- Front axle counterweight kit
- Deluxe instrument panel
- Replacement Bob-Tach™
- Fresh air heater kit
- Front door kit
- Door sensor kit
- Plumbing kit for fresh air heater
- Back up alarm kit
- FOPS kit **
- Single-point lift kit
- Power Bob-Tach™ kit
- Operator cab, CE, enclosure kit
- 7-pin attachment control kit
- Four-point lift kit
- Rear auxiliary hydraulic kit
- Road kit
- Keyless kit
- Rear window wiper kit
- 14-pin attachment control kit
- 4-Way flasher kit
- 80 mm Suspension seat kit
- Cup holder kit
- Headlight guard kit
- Muffler guard kit
- Tail light guard kit

Attachments

Angle Brooms
Auger Accessories
Augers
Backhoes
Bale Forks
Box Blades
Breaker Accessories
Breakers
Brush Saws
Brushcat™ Rotary Cutters
Combination Buckets
Concrete Mixers
Concrete Pumps
Construction / Industrial Buckets
Diggers
Dozer Blades
Drop Hammers
Dumping Hoppers
Fertilizer and Grain Buckets
Flail Cutters
General Purpose (GP) Bucket
Graders
Grapples, Industrial
Landplanes
Landscape Rakes
Laser Equipment
Low Profile Buckets
Miscellaneous
Mixing Buckets
Mowers
Pallet Fork Accessories
Pallet Forks, Hydraulic
Planer Accessories
Planers
Root Grapples
Rotary Grinders
Scarifiers
Scrapers
Skeleton Buckets
Snow & Light Material Buckets
Snow Blades
Snow Pushers
Snow V-Blades
Sod Layers
Soil Conditioners
Spreaders
Steel Tracks
Stump Grinders
Sweepers
Tillers
Tilt-Tatch
Tree Transplanters
Trench Compactors
Trenchers
Utility Forks
Vibratory Rollers
Wheel Saws
Whisker Brooms
Wood Chippers

Specifications

Bobcat S570 Skid Steer Planer Specification

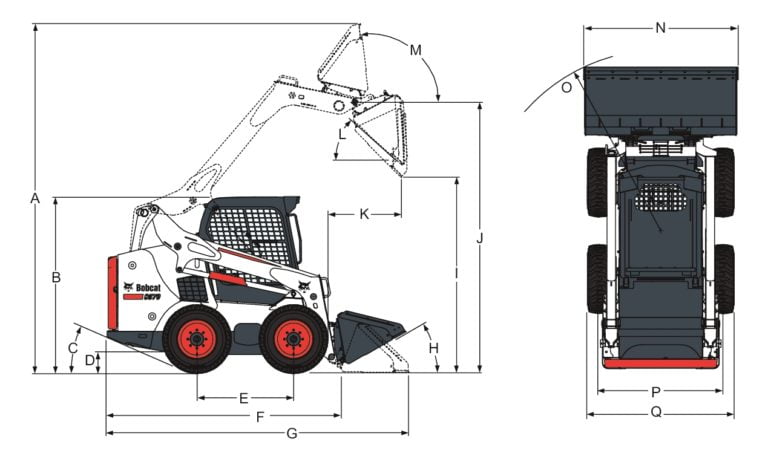

Dimensions

(A)	Operating height	3,901 mm
(B)	Height with operator cab	1,972 mm
(C)	Angle of departure	24.2 °
(D)	Ground clearance	185 mm
(E)	Wheelbase	1,082 mm
(F)	Length without attachment	2,657 mm
(G)	Length with standard bucket	3,378 mm
(H)	Rollback at ground position	30 °
(I)	Dump height with standard bucket	2,319 mm
(J)	Height to bucket hinge pin	3,023 mm
(K)	Dump reach at maximum height	828 mm
(L)	Dump angle at maximum height	42 °
(M)	Rollback fully raised at maximum height	97 °
(N)	Width over standard bucket	1,727 mm
(O)	Turning radius with standard bucket	2,024 mm
(P)	Track, standard tyres	1,374 mm
(Q)	Width over standard tyres	1,643 mm

Machine Rating

Rated operating capacity (ISO 14397-1)	942 kg
Tipping load (ISO 14397-1)	1,885 kg
Pump capacity	64.7 L/min
Pump capacity (with high flow option)	101.1 L/min
System relief at quick couplers	23.8-24.5 MPa
Max. travel speed (high range – option)	17.3 km/h
Max. travel speed (low range)	11.8 km/h

Engine

Make / Model	Bobcat / D24
Compliancy	97/68 EC Stage IIIB
Fuel	Diesel
Cooling	Liquid
Power at 2600 RPM	45.5 kW
Torque at 1800 RPM (SAE J1995 Gross)	225 Nm
Number of cylinders	4
Displacement	2,392 cm³
Fuel tank	93.7 L

Weights

Operating weight	2,939 kg
Shipping weight	2,636 kg

Controls

Vehicle steering	Direction and speed controlled by two hand levers or optional Advanced Control System (ACS) or Selectable Joystick Controls (SJC)
Loader hydraulics tilt and lift	Separate foot pedals or optional Advanced Control System (ACS) or Selectable Joystick Controls (SJC)
Front auxiliary (standard)	Electrical switch on right-hand steering lever

Drive System

Transmission

Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors

Environmental

Operator LpA(98/37 & 474-1)	85 dB(A)
Noise level LWA(EU Directive 2000/14/EC)	101 dB(A)
Whole body vibration (ISO 2631–1)	0.7 ms^-2
Hand-arm vibration (ISO 5349–1)	1.2 ms^-2
